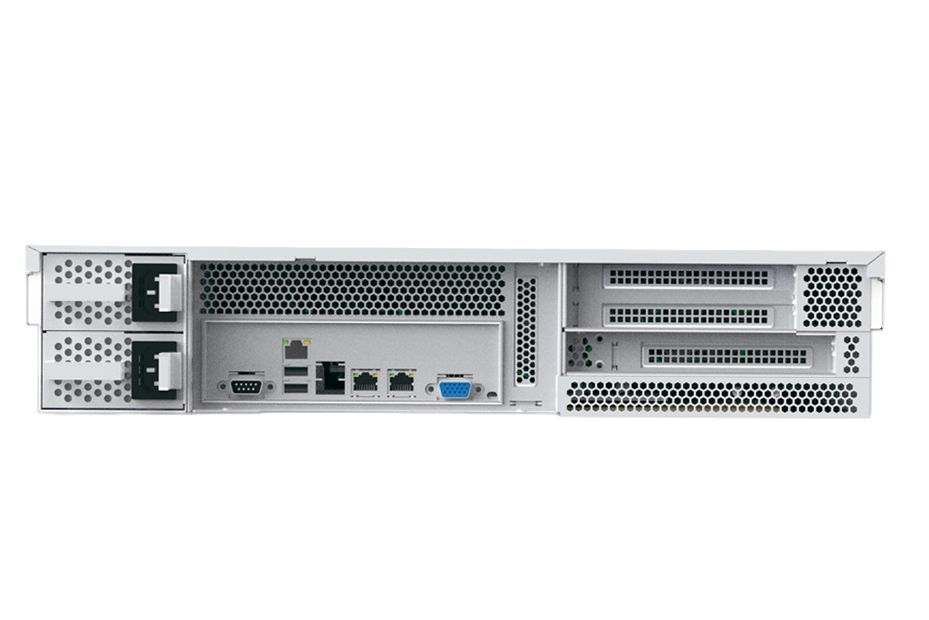

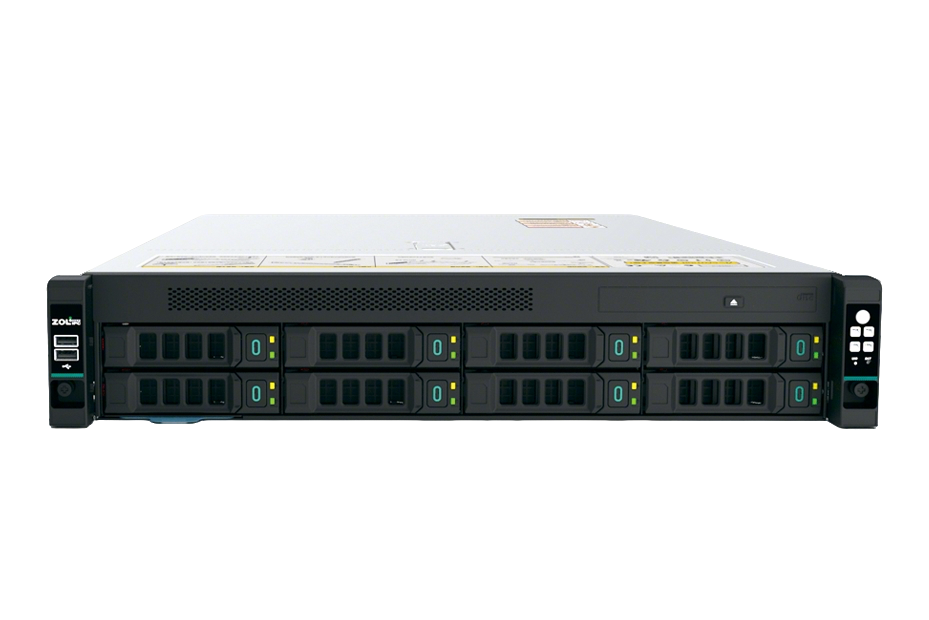

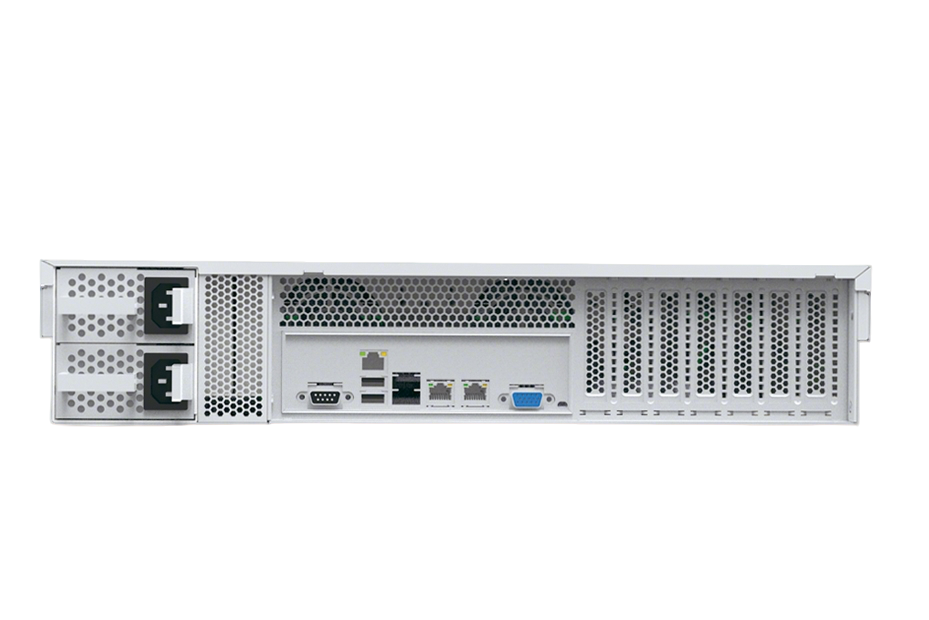

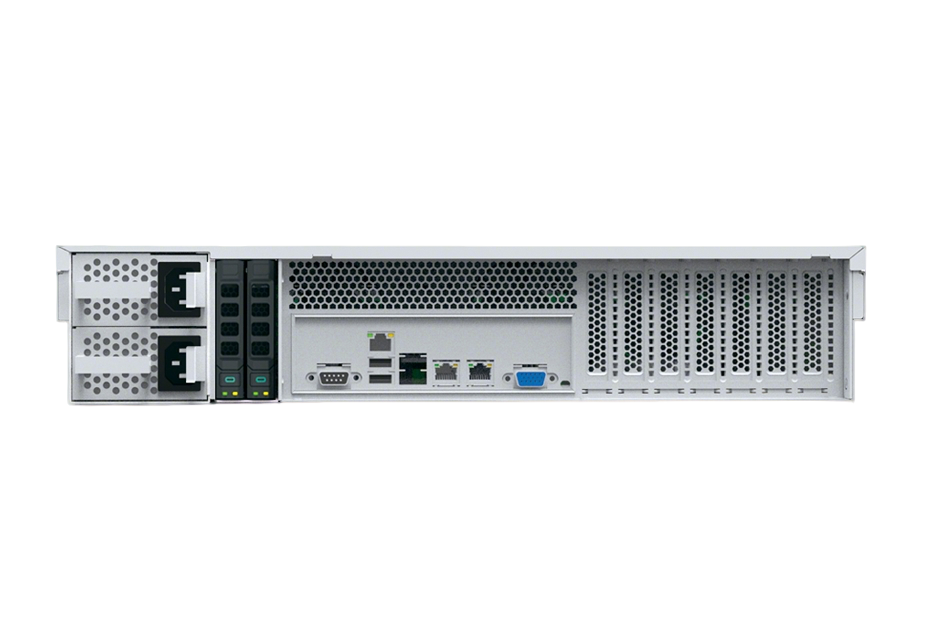

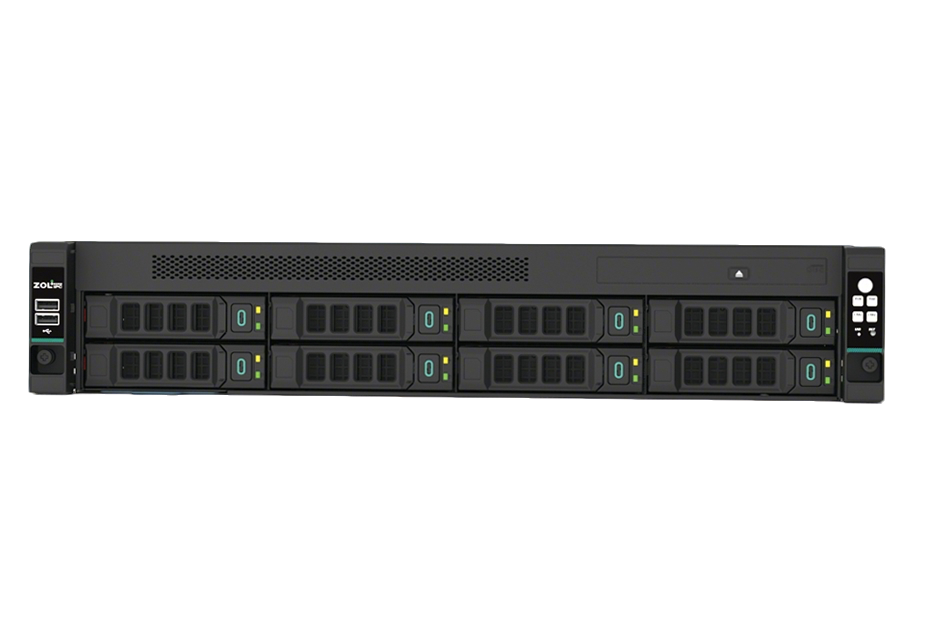

ZL-S2010-2011 server chassis

ZL-S2010-2011

ZL-S2010/2011 is a 2U 19-inch standard rack-mount server chassis, which is compatible with E-ATX full-size motherboards and also supports ATX, Micro-ATX, and smaller motherboards. Equipped with a 12Gb/s high-speed direct-connect backplane, it is compatible with SAS3.0 and SATA3.0 hard drives. It comes standard with 8 3.5/2.5-inch hot-swappable drive bays, and also features built-in expansion bays. Optional rear hard drive bays are available to meet the needs for large-capacity storage expansion.

Applicable solutions

It can meet the standardized deployment requirements of data centers, enterprise computing power, and large-capacity storage

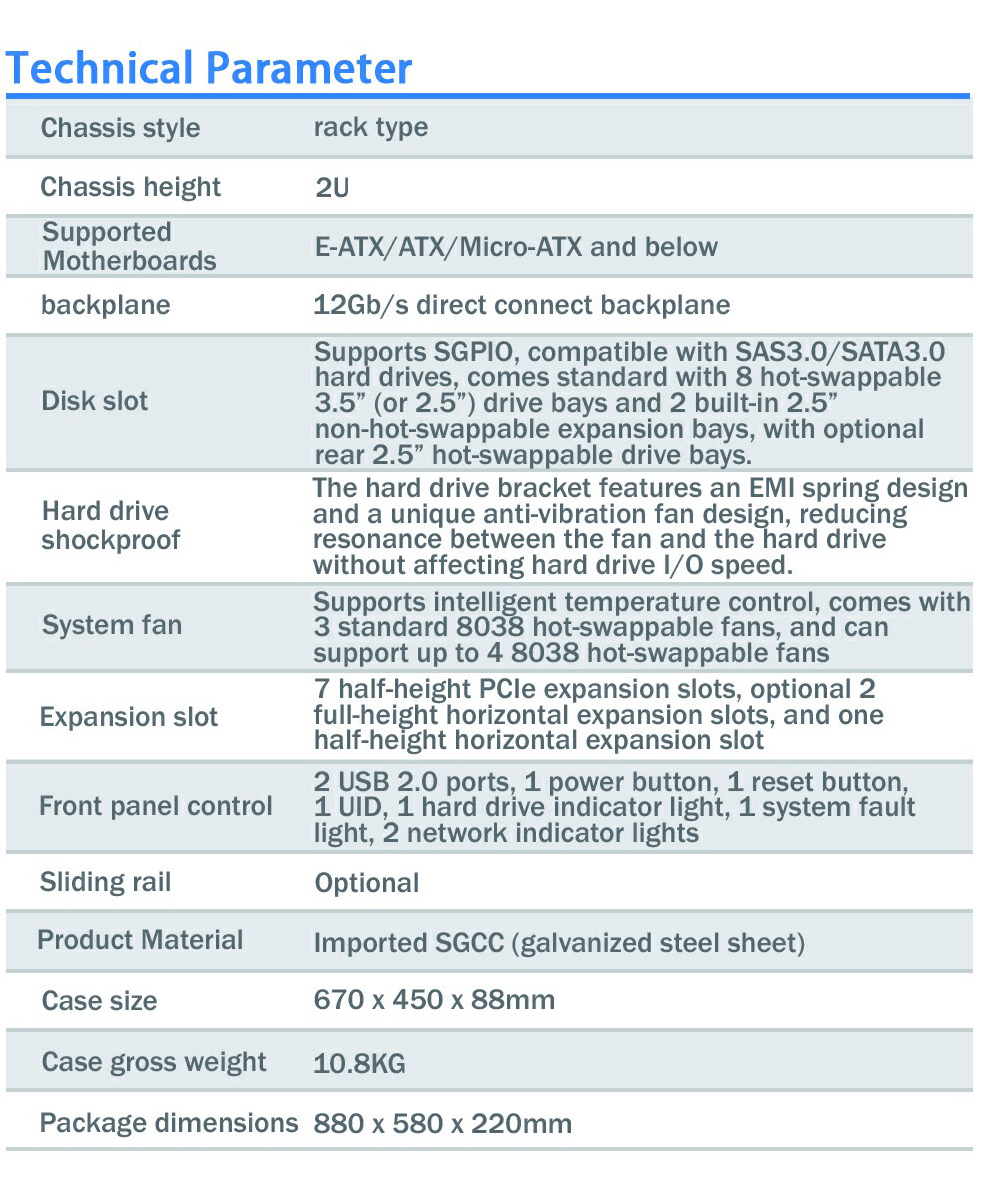

Product Overview Product Specifications relevant materials

The motherboard supports larger sizes up to and including E-ATX (12”x13")
12Gb/s direct-connect backplane, compatible with SAS/SATA
Supports single power supply or 1+1 redundant power supply
Intelligent temperature control, supporting up to 4*8038 plug-in fans
Optional horizontal insertion full-height dual-position card

Ultra-high computing power

Supports Intel® Xeon® Scalable series processors (lce Lake), supports 2 high-power CPUs, and features 1 native M.2 interface on the motherboard, enabling ultra-high computing power. It has undergone comprehensive upgrades in terms of core, frequency, cache, and interconnect channels, and adopts DDR4 memory technology, supporting 2TB memory expansion capability, which can be expanded as needed to meet the application requirements of ultra-high computing power in digital currency, cloud computing, big data, virtual computing, and other fields

Good heat dissipation control

The unique design of the front GPU chamber allows the GPU to draw in more cool air, and features an independent GPU cooling duct, forming a ventilation and heat dissipation channel that runs from the front to the back. This design promptly removes a large amount of heat from within the chassis, ensuring stable operation of the server

Extraordinary GPU density support

The 4U system can support up to 10 dual-wide, full-height GPU cards for switch interconnection, and is compatible with the NVIDIA GeForce series and NVIDIA Tesla A800. It offers multiple power supply modes, requires no modification of accessories, and provides an unparalleled excellent architecture for pursuing greater computing performance

AI-based intelligent remote management

IPMI remote management enables real-time monitoring and operations, including system startup and shutdown, from a remote location, ensuring timely maintenance by system administrators. It achieves a true redundancy architecture, encompassing fans, power supplies, and storage
